Control Panel for AIN_4 v1.2

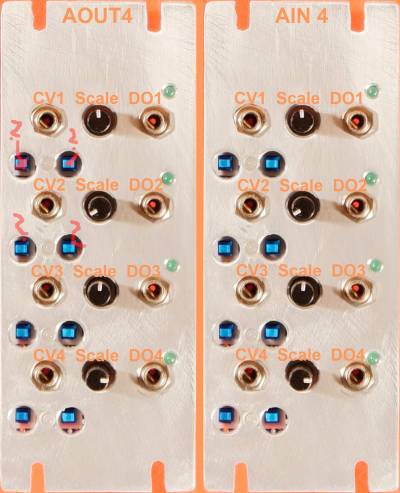

Front-Panel for AIN_4 v1.2

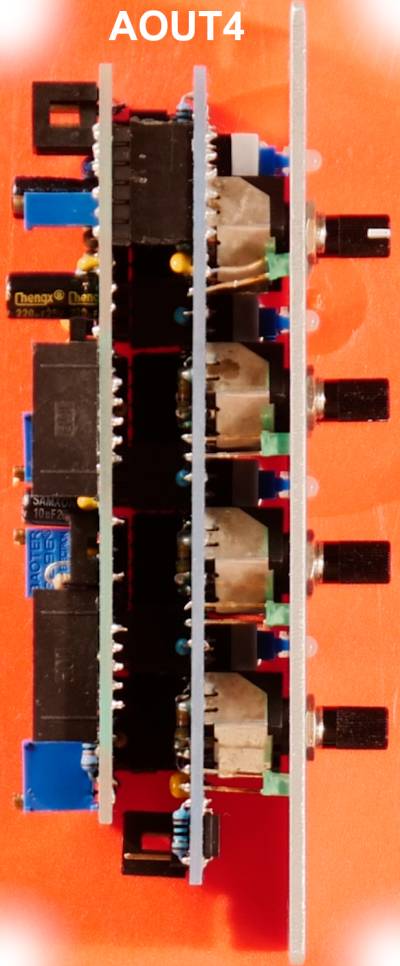

i measeured the PCB, and made a drawing in order to create a hand-drilled Frontpanel…
so dont take the values as 100% true…:
