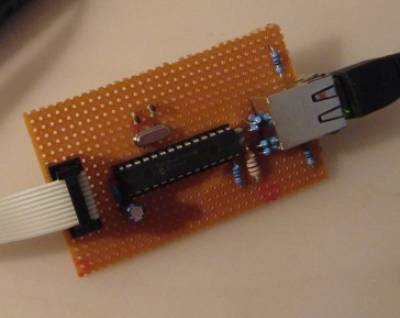

ETH Board parts list
Parts List
| Description | Type | Quantity | Reichelt Ref | Mouser Ref | Digikey Ref |
|---|---|---|---|---|---|
| ENC28J60 | IC | 1 | 579-ENC28J60-I/SP | ||
| RJ45 Connector | 1 | 530-SI-60024-F | |||
| IC Socket | 28 pin | 1 | GS 28-S | 571-1-2199298-9 | |
| Crystal | 25Mhz | 1 | 25,0000-HC49U-S | 695-HC49US-25-U | |
| Capacitor | 18pF | 2 | Kerko 18p | 810-CC45SL3FD180JYGN | |
| Capacitor | .01uF (10nF) | 2 | Z5U-2,5 10n | 594-K103K10X7RH5TH5 | |
| Capacitor | .1uF (100nF) | 3 | Z5U-2,5 100n | 594-K104K15X7RF5UH5 | |
| Capacitor | 10uF Tantalum | 1 | TANTAL 10/16 | 581-TAP106K016CRS | |
| Capacitor | 100uF Polarized | 1 | rad 100/16 | 661-EGXF161ELL101MJ3 | |
| Resistor | 2.32k Ohms 1% | 1 | METALL 2,32k | 660-MF1/2CC2321F | |
| Resistor | 49.9k Ohms 1% | 4 | METALL 49.9 | 603-MFR-25FBF52-49R9 | |
| Resistor | 220 Ohms | 2 | 1/4W 220 | 291-220-RC | |
| Ferrite Bead | 10 uH | 1 | ML-MICC 10µ | 652-RLB0912-100KL | |
| 2×5 DIL Header | 1 | WSL 10G | |||
| 2×5 DIL Socket | 1 | PFL 10 | 538-87834-1019 |
Mouser Project Cart: https://www.mouser.com/ProjectManager/ProjectDetail.aspx?AccessID=b1d4f23a5e
Datasheets
