line_driver

LINE DRIVER Boards parts list

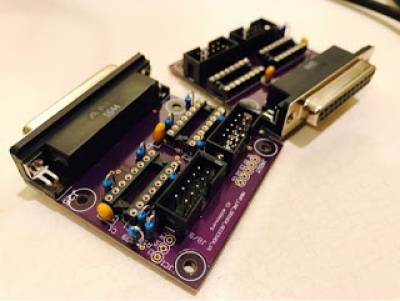

The line driver modules have been designed to connect SPI devices and serial shift registers (DINs/DOUTs) to a MIDIbox over long distances.

Parts List

Description Type Quantity Reichelt Ref Mouser Ref Digikey Ref
MC3486 RS-422 Interface IC Quad Line 2 MC 3486 DIL 595-MC3486N
MC3487 RS-422 Interface IC Quad Line 2 MC 3487 DIL595-MC3487N
IC socket 16 pin 4 GS 16 575-199316
Ceramic Cap 100 nF (.1uF) 4 Z5U-2,5 100n 80-C412C104K5R
Resistor 100 Ohm 12 1/4W 110 603-MFR-25FBF52-100R
D-sub female connector 25 pin 2 D-SUB BU 25US 571-1734350-1
2×5 DIL Headers 10 pin 4 WSL 10G
2×5 DIL Sockets 10 pin 4 PFL 10538-87834-1019
1-row SIL Headers (only 13 pins required) 1 855-M20-9994045
Jumper 10 pin 4 JUMPER 2,54GL RT

Mouser Parts Cart: https://www.mouser.com/ProjectManager/ProjectDetail.aspx?AccessID=e7d04d9577

Datasheets
