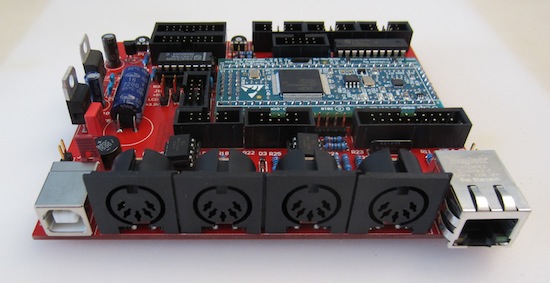

LPC17 Core 32 Board parts list

Parts List

Description Type Qty Reichelt Ref Mouser Ref Digikey Ref
74HC595 IC 1 74HC 595 595-CD74HC595E
74HCT541 IC 1 74HCT 541 595-D74HCT541E
7805 VR 1 uA 7805 511-L7805CV
LF33 VR 1 LF 33 CV 511-LF33CV
Rectifier Rect 1 B80C800RUND 625-B80C800G-E4
6N138 Optocoupler 2 6N 138 12-6N138M
1N4148 Diode 3 1N 4148 512-1N4148
BC337 Transistor 1 BC 337-16 512-BC33740TA
10 kΩ Resistor 1 1/4W 10k 291-10K-RC
4.7 kΩ Resistor 2 1/4W 4.7k 291-4.7K-RC
2.2 kΩ Resistor 4 1/4W 2.2k 291-2.2K-RC
1 kΩ Resistor 4 1/4W 1.0k 291-1K-RC
220 Ω Resistor 2 1/4W 220 291-220-RC
47 Ω Resistor 4 1/4W 47 291-47-RC
ResNet 4*10 kΩ Resistor 1 SIL 5-4 10K 652-4606X-1LF-10K
ResNet 4*1 kΩ Resistor 1 SIL 5-4 1,0K 652-4606X-1LF-1K
100 nF Capa Ceram 4 Z5U-2,5 100n 80-C412C104K5R
330 nF Capa Ceram 1 MKS-2 330n 140-50N2-330J
47 µF Capa Elec 1 rad 47/25 647-USV1C470MFD
100 µF Capa Elec 1 rad 100/16 667-EEU-FR1C101B
2200 µF Capa Elec 1 rad 2.200/16 667-EEU-FC1C222SB
TrimPot 10 k Pot 2 PT 6-L 10K 72-T70XX-10K
Optocoupler Sockets Socket 2 GS 8 653-XR2A-0811-N
74HC595 Socket Socket 1 GS 16 653-XR2A-1611-N
74HCT541 Socket Socket 1 GS 20 653-XR2A-2001-N
MIDI sockets Socket 4 MABP 5S 571-5750477-1
2×5 DIL Sockets Socket 7 PFL 10 538-87834-1019
2×8 DIL Sockets Socket 2 PFL 16 538-87834-1619
SIL Headers PinHeader 3 SL 1X40G 2,54 855-M20-9994045
DIL Headers PinHeader 2 SL 2X10G 2,54 855-M20-9982046
