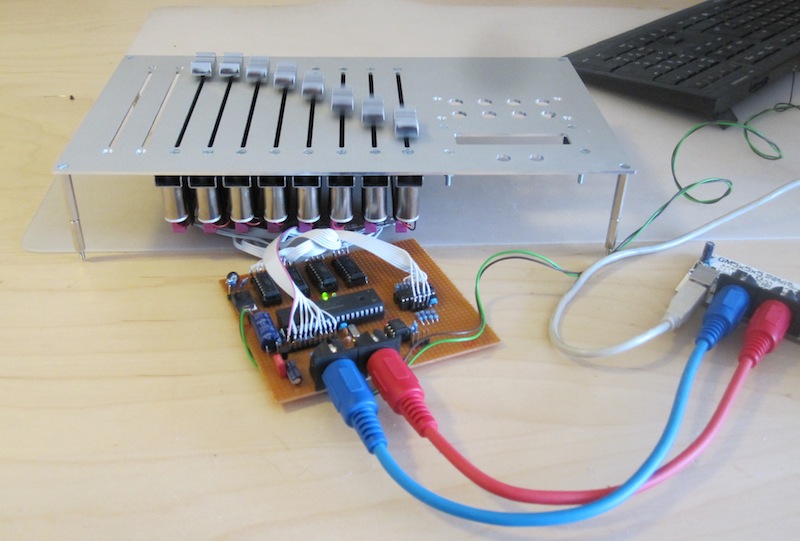

MotorFader NG

Parts List

Description	Type	Quantity	Reichelt Ref
L293D	IC	4	L 293 D
74HC165	IC	1	74HC 165
PIC18F452-I/P	Microcontroller	1	PIC 18F452-I/P
10 MHz	Quartz	1	10,0000-HC49U-S
6N138	Optocoupler	1	6N 138
1N4148	Diode	1	1N 4148
1N4002	Diode	1	1N 4002
7805	Voltage Regulator	1	uA 7805
LM317	Voltage Regulator	1	LM317-220
4*47 kOhm	Resistor Network	2	SIL 5-4 47K
1 kOhm	Trimpot	1	PT 6-L 1,0K
100 Ohm	Resistor	1	1/4W 100
220 Ohm	Resistor	3	1/4W 220
240 Ohm	Resistor	1	1/4W 240
470 Ohm	Resistor	2	1/4W 470
1 kOhm	Resistor	2	1/4W 1.0k
4.7 kOhm	Resistor	1	1/4W 4.7k
10 kOhm	Resistor	2	1/4W 10k
10 uF	Capa Elec	2	rad 10/35
2200 uF	Capa Elec	1	rad 2.200/25
100 nF	Capa Ceram	6	Z5U-2,5 100n
33 pF	Capa Ceram	2	Kerko 33p
Green Status LED	LED	1	LED 3MM ST GN
PIC Socket	IC-Socket	1	GS 40
L293D/74HC595 Socket	IC-Socket	5	GS 16
Optocoupler Socket	IC-Socket	1	GS 8
MIDI sockets	MIDI Socket	2	MABP 5S
