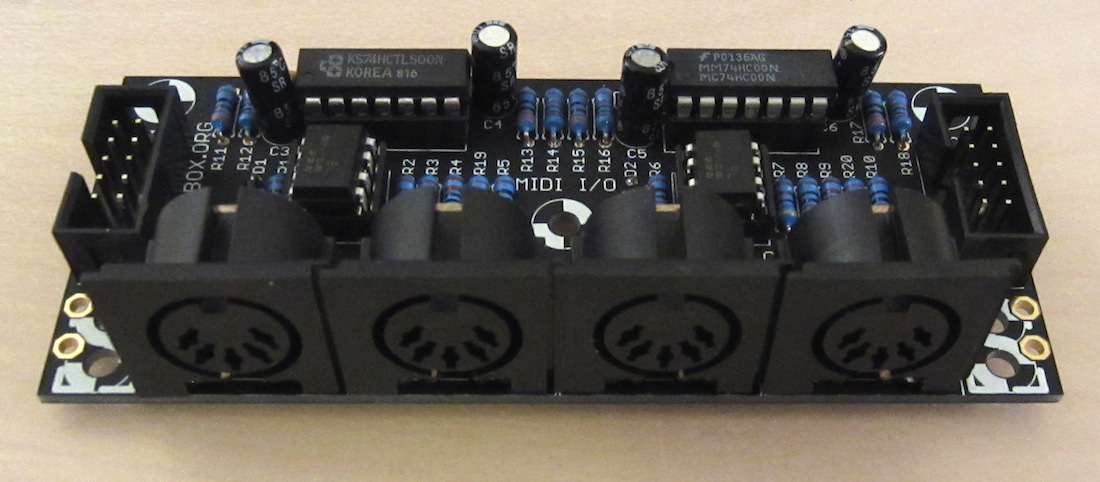

MIDI IO Board parts list
Parts List
| Description | Type | Quantity | Reichelt Ref | Mouser Ref | Digikey Ref |
|---|---|---|---|---|---|
| 74HC00 | IC | 2 | 74HC 00 | 595-SN74HC00N | |
| 6N138 | OptoCoupler | 2 | 1/4W 1.0k | 512-6N138M | |
| 1kΩ | Resistor | 2 | 1/4W 1.0k | 291-1K-RC | |
| 4,7kΩ | Resistor | 2 | 1/4W 2.2k | 291-4.7K-RC | |
| 100kΩ | Resistor | 6 | 1/4W 100k | 291-100K-RC | |
| 220Ω | Resistor | 10 | 1/4W 220 | 291-220-RC | |
| 10kΩ Pot | Pot | 1 | PT 6-L 10K | 72-T70XX-10K | |
| 1N4148 | Diode | 2 | 1N 4148 | 512-1N4148 | |
| Rx Yellow LED | LED | 2 | LED 3MM ST GE | ||
| Tx Red LED | LED | 2 | LED 3MM ST RT | ||
| 100nF | Cap Ceram | 2 | Z5U-2,5 100n | 80-C412C104K5R | |
| 10µF 35V | Cap Elec | 4 | rad 10/35 | 647-USV1V100MFD | |
| DIP8 Socket | Socket | 2 | GS 8 | 653-XR2A-0811-N | |
| DIP14 Socket | Socket | 2 | GS 14 | 653-XR2A-1401-N | |
| DIL 2×5 Socket | Socket | 2 | WSL 10G | 538-87834-1019 | |
| MIDI Socket | Socket | 4 | MABP 5S | 571-5750477-1 |
Mouser Project Cart: https://www.mouser.com/ProjectManager/ProjectDetail.aspx?AccessID=37d69f5473
Datasheets
