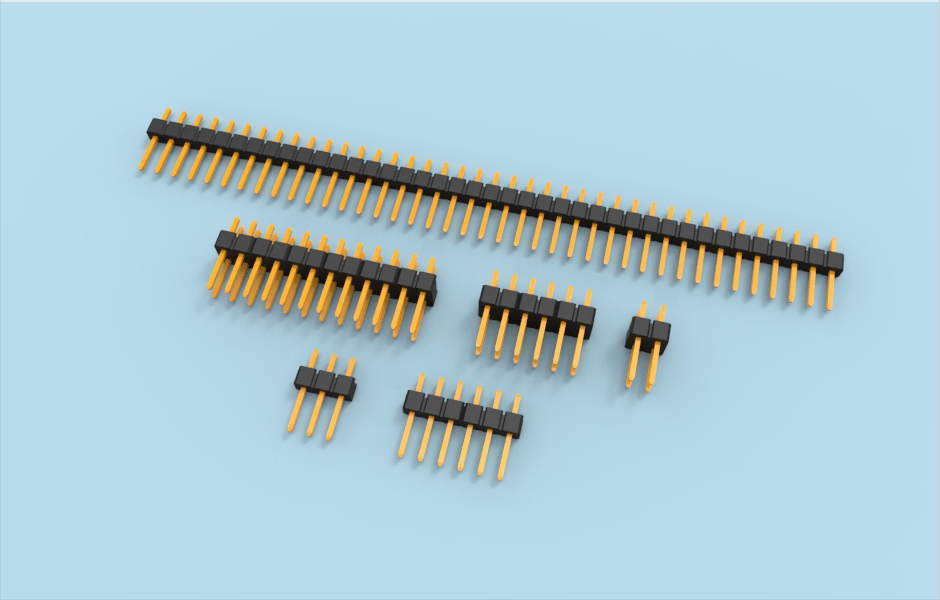

A pinheader is a basic connector to plug things on your PCB without having them soldered.

It can be single or dual row (SIL-DIL).

The usual pitch, aka the distance between 2 pins is 2,54mm. A pin header is designed to be splitted that you can have only the number of pins required to solder.
