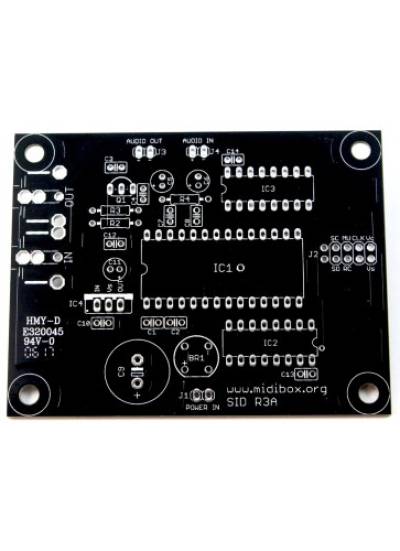

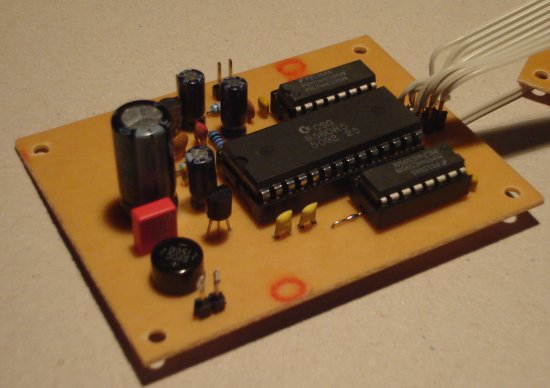

SID Board parts list

Parts List

Description Type Quantity Reichelt Ref Mouser Ref Digikey Ref
MOS 6581/6582/8580 IC 1 / / /
74HC595 IC 2 74HC 595 595-SN74HC595N
BC547 Transistor 1 BC 547C 512-BC547BTA
Rectifier Rect 1 B80C800RUND 625-B80C800G-E4
78L12 VR 1 uA 78L12 512-LM78L12ACZ
1 kΩ Resistor 2 1/4W 1.0k 291-1K-RC
10 kΩ Resistor 1 1/4W 10k 291-10K-RC
470 pF Capa Ceram 1 Kerko 470p 80-C315C471G5G
Syro 470 pF 2.5% 2 Styroflex 470p
1 nF Capa Ceram 2 Kerko 1,0n
100 nF Capa Ceram 4 Z5U-2,5 100n
330 nF Capa Ceram 1 MKS-2 330n
1 µF/16V Capa Elec 1 rad 1/63
10 µF/16V Capa Elec 2 rad 10/35
2200 µF/25V(!) Capa Elec 1 rad 2.200/25
SID Sockets Socket 1 GS 28 653-XR2A-2811-N
74HC595 Sockets Socket 2 GS 16 653-XR2A-1611-N
SIL PinHeader 1 SL 1X40G 2,54
DIL PinHeader 1 SL 2X40G 2,54
