SpeakJet IIC Module Construction

1. Introduction

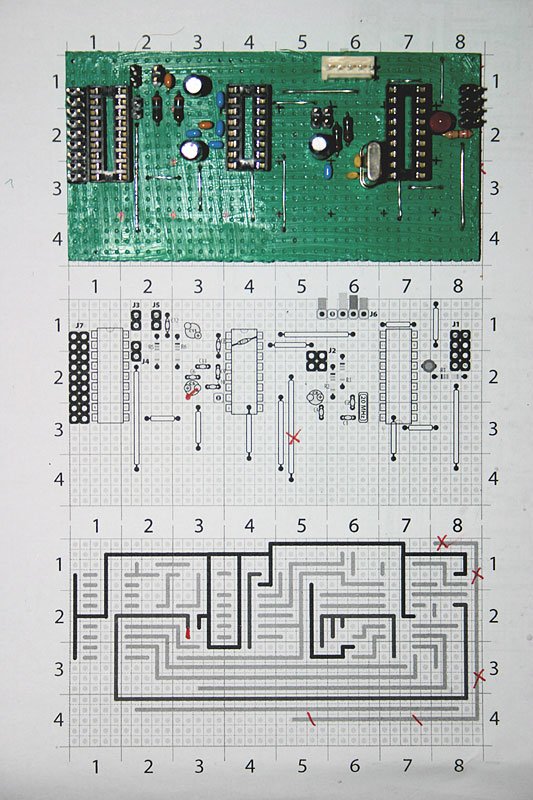

There are currently no etched boards or etching layouts available. But here's a detailed plan for a breadboard. Soldering that shouldn't take longer than soldering a premade one.

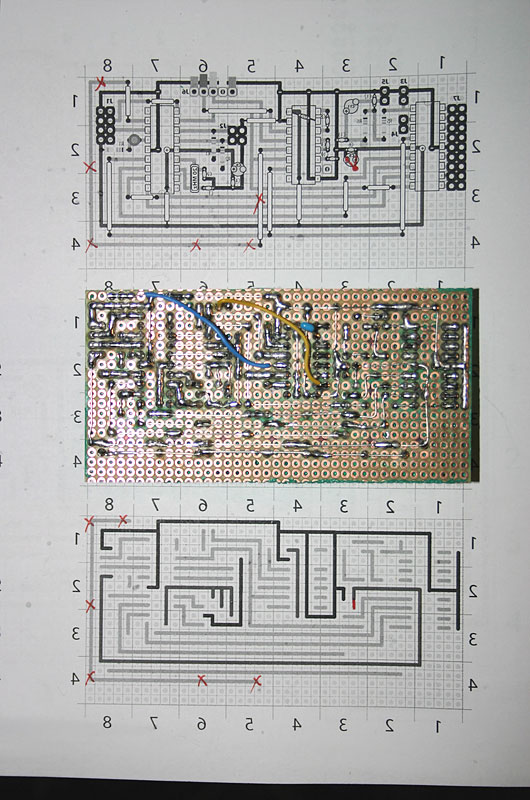

Download the PDF plan from below to get started, it contains also a list of needed parts. If you have FreeHand, you should definitely also download the source, because you can switch the visibility of layers. However, the PDF contains multiple views of the Breadboard Construction, so it should be easy to rebuild.

The RS232 Section is optional.

:!: Never connect RS232 signals from your PC directly to the SpeakJet! :!:

Because RS232 is operated with 12V and the SpeakJet just deals with 5V, you will likely damage it!

2. Hardware Setup

Full Setup

To turn the SpeakJet IIC Module into a fully operateable synthesizer, you need this:

  • 1 Core-Module (PIC18F)
  • 1 SpeakJet IIC Module (PIC16F, MAX232 and SpeakJet)
  • optional 1 LCD
  • optional Amplifier circuit

Construction Steps


  1. Soldering the core module
  2. Building the Speakjet iic module
  3. For Core V2 Users: Adding an additional 1k pull-up resistor between Vd and SC at CORE::J4 (to allow “clock stretching”, not needed for Core V3)
  4. Burning the speakjet_iic firmware to the PIC16F Microchip (requires a MBHP-Burner module together with a 18-to-40 pin adapter made out of two IC-Sockets)
  5. The Core runs with MIOS (default Bootloader), PIC18F Chips from SmashTV or Mike's Midishop are compatible!

3. Connections

You need to download the plan (it also contains a list of needed parts!):

4. Parts List

Part Value Type Qty Mouser Ref
IC1 SpeakJet SpeakJet 1 /
IC2 PIC 16F88PIC 1 579-PIC16F88-I/P
IC3 MAX 232 MAX 232 EEPE 1 700-MAX232EEPE
Q1 20MHz Q 1
R1 220 Resistor 1 291-220-RC
R2,R3 10k Resistor 2 291-10k-RC
R5,R6 27k Resistor 2 291-27k-RC
R4 27k Resistor 1 291-50k-RC
C1,C2 15pF Capacitor Ceram 2
C12,C13 10nF Capacitor Ceram 2
C4,C6-10 100nF Capacitor Ceram 5
C3,C5,C11 10µF/16V Capacitor Elec 3

Jumpers

  • J1 IIC
  • J2 ID
  • J3 Line-Out (unfiltered)
  • J41 1: SJ Out, 2: D0 (Ready), 3: D1 (Speaking)
  • J5 Line-Out (hiPass-filtered)
  • J6 RS232: PC I/O
  • J7 SJ Event Inputs (see Datasheet!)

6. Buying Speakjet IC

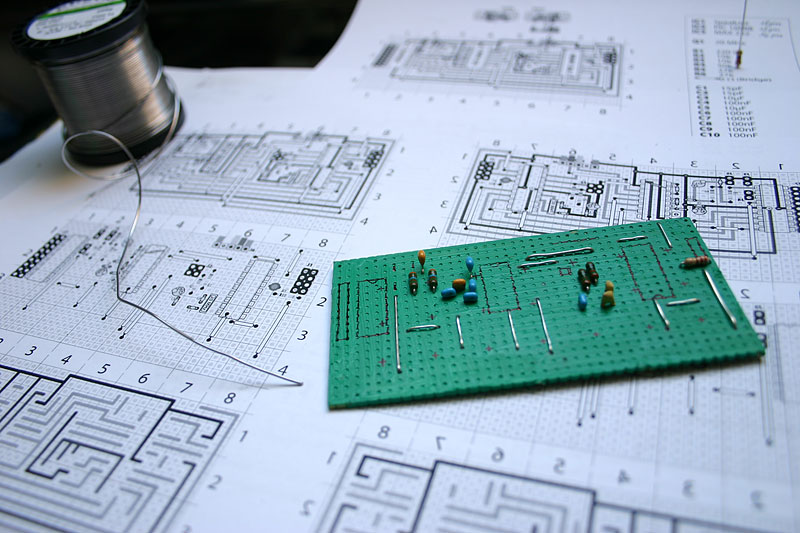

7. Soldering the Board

The current board version v1.3 has a lot less backside cabling, is easier to solder, parts have all convenient sizes and the board dimensions are landscape; similar to the MBHP-DIN/DOUT PCBs.

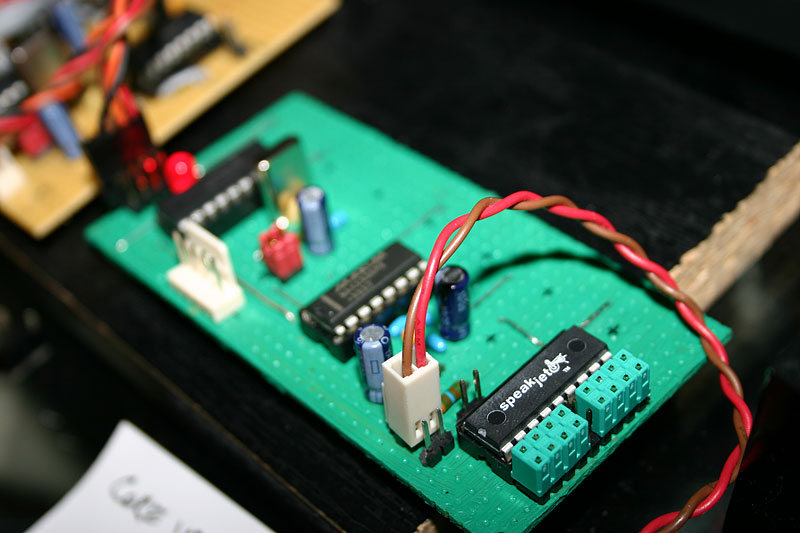

www.audiocommander.de_picbrowser_galleries_070305_kii_img_7772.jpg www.audiocommander.de_picbrowser_galleries_070305_kii_img_7773.jpg

www.audiocommander.de_picbrowser_galleries_070305_kii_img_7763.jpgwww.audiocommander.de_picbrowser_galleries_070305_kii_img_7766.jpgwww.audiocommander.de_picbrowser_galleries_070305_kii_img_7767.jpgwww.audiocommander.de_picbrowser_galleries_070305_kii_img_7768.jpg

www.audiocommander.de_picbrowser_galleries_070305_kii_img_7760.jpgwww.audiocommander.de_picbrowser_galleries_070305_kii_img_7761.jpgwww.audiocommander.de_picbrowser_galleries_070305_kii_img_7769.jpg

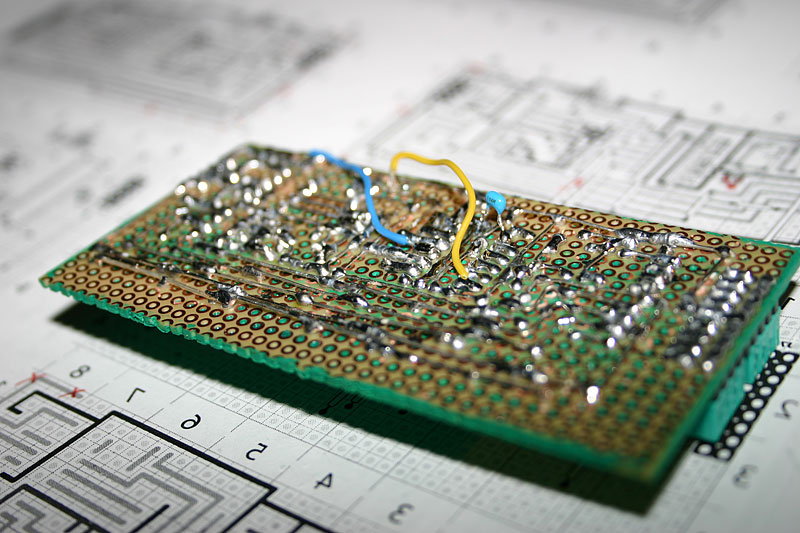

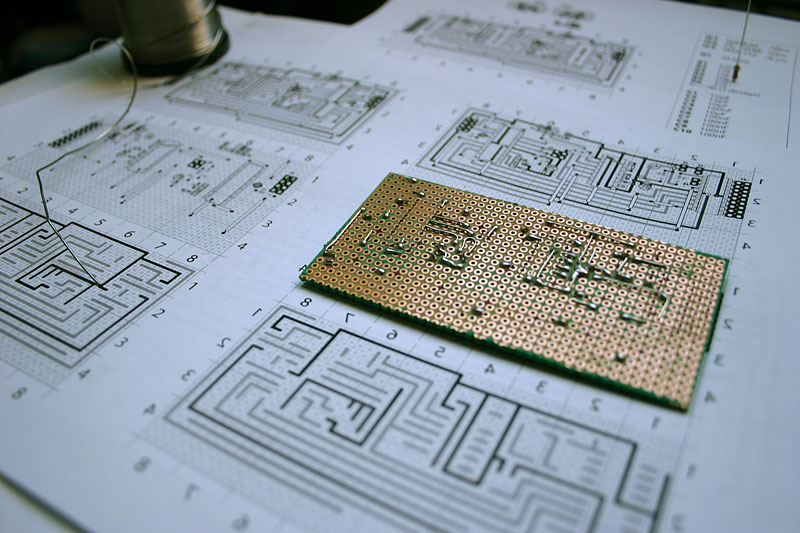

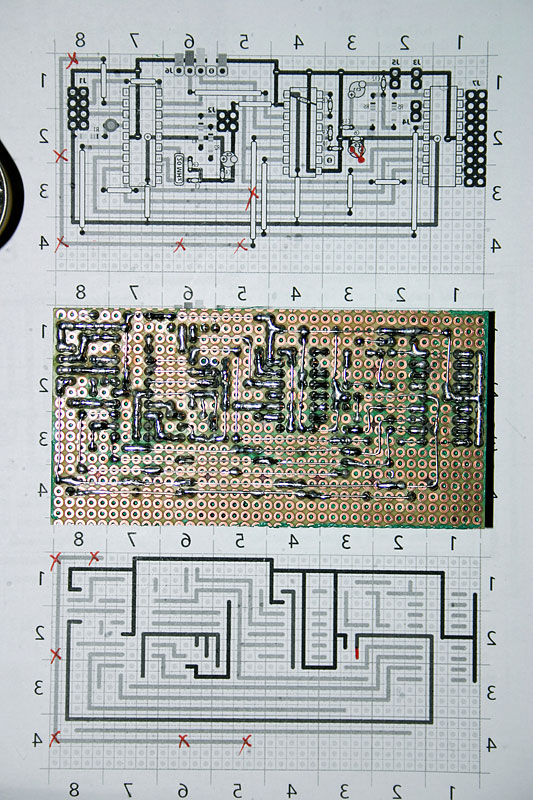

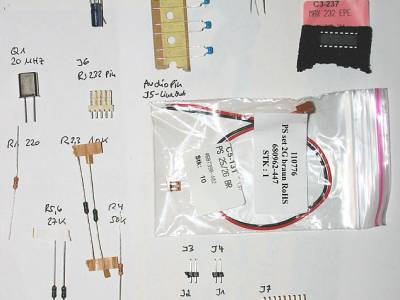

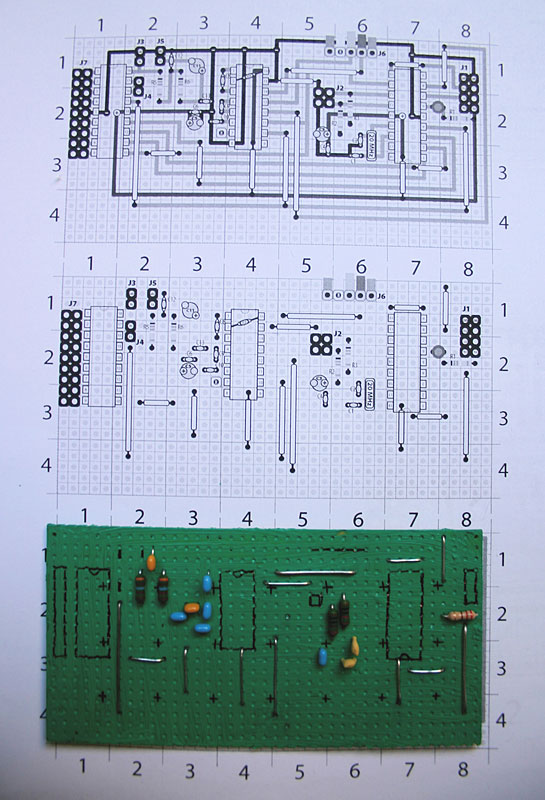

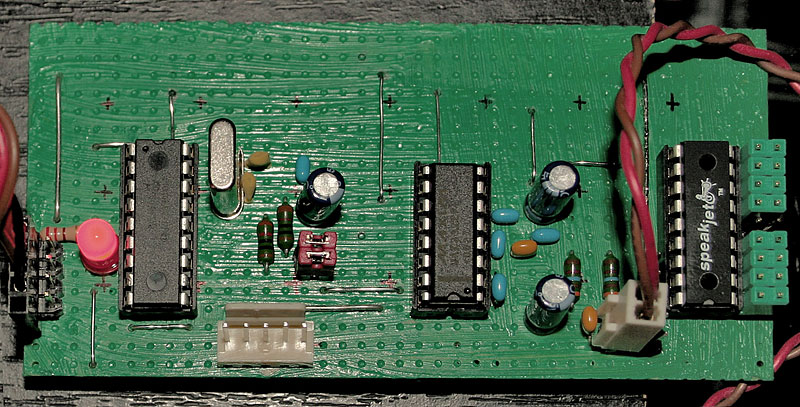

Here is a Picture Gallery v1.3 that shows the process of soldering the breadboard along with some final pictures from different views. Picture Gallery v1.0 (for historic reasons only)

Don't cut the legs at once, use them to build the paths at the bottom!I tried to make the board as small as possible, but there should be enough space to add additional pins if necessary.

8. Burning the PIC16F Firmware

You'll need the MBHP-Burner and build an adaptor from 40pin to 18pin:


Set the burner to 13.1 V (for PIC16; if you're burning PIC18 use 12.5 V) I've heard that Mike is burning the PIC16 chips, maybe SmashTV will also do this service. Just ask in the forum!

:!: I strongly recommend the firmware version 1.2 ! If not already available in the current download package you will find a pre-release hex-file in the speakJet forum topic (UserProjects)

Adding a Core Module

  • Build a MBHP core module; I recommend using the double sided PCBs from SmashTV. They have a few extras that make life easier and the quality is pretty cool ;)
  • Build a 4 pin ribbon cable with connectors.
  • Connect the J4 pin row of the Core → to one row of J1 of the SJ-IIC-Module. there are two rows, because IIC modules and other IIC-Devices can be chained
  • For kII v.0.2.4 and higher: connect SpeakJet:D2/BufferHalfFull to Core:J14 (optional)
  • Upload MIOS v.1.9 to the Core
  • Upload the kII application
