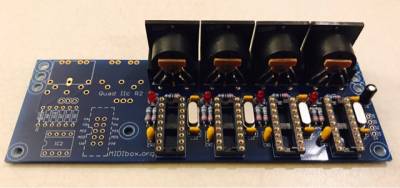

Quad_IIC_MIDI Board parts list
The IIC MIDI module provides a bridge between IIC and MIDI, and mainly consists of a PIC16F88 microcontroller from Microchip, which runs with a special firmware (not MIOS!).
Parts List
| Description | Type | Quantity | Reichelt Ref | Mouser Ref | Digikey Ref |
|---|---|---|---|---|---|
| IC1-4 | PIC16F88(Must be programmed) | 4 | 579-PIC16F88-I/P | ||
| IC-Socket for 16F88 | 4 | 575-199318 | |||
| LEDx | 3mm LED red | 4 | 696-SLX-LX3044HD | ||
| Q1x | 20mhz crystal | 4 | 559-FOXS200-20-LF | ||
| C3 | 10µF Electrolytic capacitor | 1 | 647-UKL1V100KDDANA | ||
| C1x,C2x | 15pF Ceramic capacitor “33” | 8 | 581-SR151A150J | ||
| C4x | 100nF=.1µF Ceramic capacitor “104” | 4 | 598-M20U104M5-F | ||
| R2x | 220Ω resistor | 4 | 660-MF1/4DCT52R2200F | ||
| R9x | 220Ω resistor | 4 | 660-MF1/4DCT52R2200F | ||
| R10x | 220Ω resistor | 4 | 660-MF1/4DCT52R2200F | ||
| – | 5 pin DIN connector | 4 | 502-57PC5FS | ||
| J4 | 1×4 pinheader | 1 | 710-61201021621 | ||
| ——- | —optional BLM connection parts—- | —– | |||
| IC2 | 6N138 optocoupler | 1 | 859-6N138M | ||
| IC2 | IC-Socket for 6N138 | 1 | 575-199308 | ||
| R6 | 1KΩ resistor | 1 | 660-MS1/4DCT52R1001 | ||
| R7 | 4.7KΩ resistor | 1 | 603-MFR-25FBF52-4K7 | ||
| R8-R10 | 220Ω resistor | 3 | |||
| D1 | 1N4148 diode | 1 | 512-1N4148 | ||
| – | 8 pin DIN connector | 1 | 490-SDF-80J | ||
| – | Box Header 2×5 | 1 | |||
Mouser Parts Cart: https://www.mouser.com/ProjectManager/ProjectDetail.aspx?AccessID=a9ef9df865
