TriggerMatrix V4

The Newest Version is V4 which is documentated here: triggermatrix4

TriggerMatrix V0

The Idea from Retriggering Melodys and Drums from a static drum-sequence, goes (for me) back into 2010, where i realized it via Max4Live:

in abletons drumtrack, i placed the SENDER, it triggered via CC the RECEIVERS, the Receivers directly where feedet with Midi-Melodys in there Parent-Track, a basic ReTrigger
Max4Live-Device

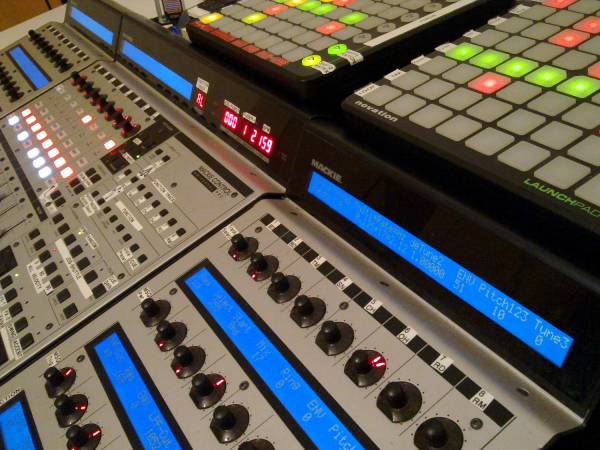

2012 i kicked Ableton, and made a standalone MAX-MSP Groovebox with Triggermatrix as Core-Feature:

Video-GruftBox-in-use

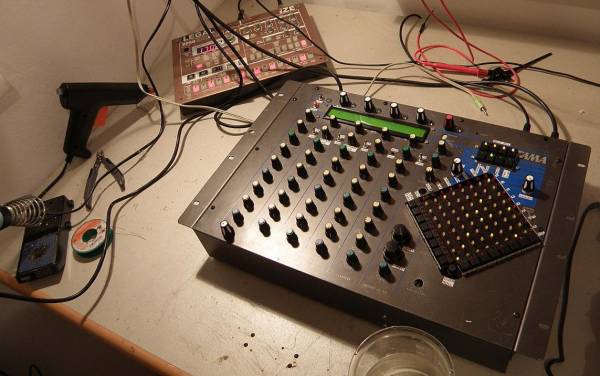

then comes the 8bit Prototype, built in a Techstar made it a TEKKSTAR, but also there it was soon replaced with a 32Bit Core,

Tekkstar in use
it was a 8×8 LED-Matrix, with 2×8 Buttons, on Breathboard

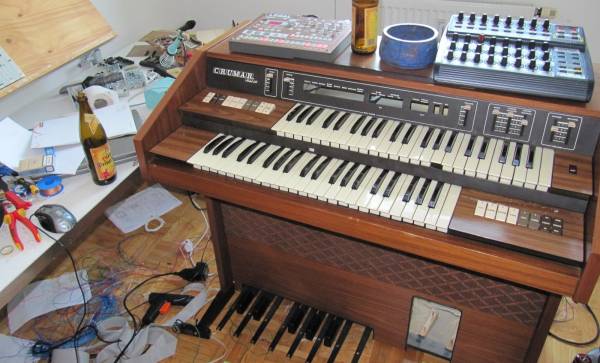

a other 32bit Variante built in on the Upper-Manual in Crumar 198, UI-controlled via a BCR2000
Video-Crumar-In-Use

TriggerMatrix V1

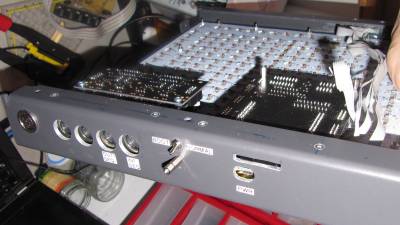

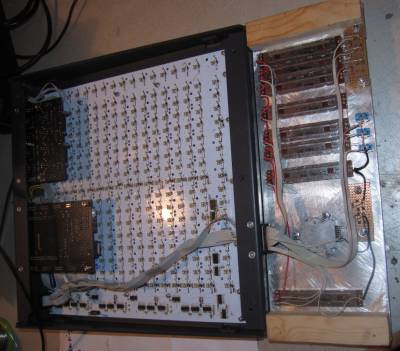

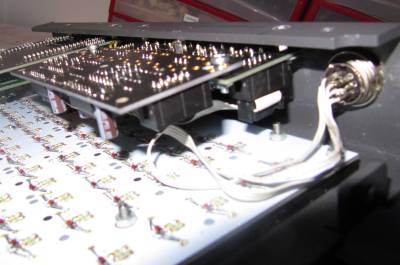

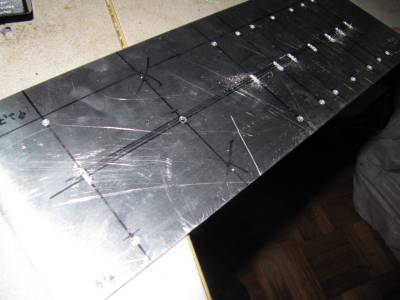

32 Bit PROTOTYPE

TriggerMatrix V2

not supported any more, it has timing issues, use the way more lightweight V3! scroll down…

What is Triggermatrix ?

a quick but not full view into triggermatrix and sequencing (german-austrian)
Triggermatrix Teaching
Triggermatrix-basics
Echtzeit Musik

Teaser

You have spend time to program a cool rythm, and you already know which chords/melodys you want to play, and now its time to programm the timing/steps/the rythm in the melody… after quite a while of trying and looking on your drumline you have a fitting melody line for your drums…

now you change the drums a bit… o no i also have to change the melody now… i make a break, a intro…oh no so much work and time…and all because, the melody is fixed in arrangement,

you want a melody line that goes with beat? you want to change the beat note stream also (noteprocessing)? > read more… i have a tool for you!!! it will change your way doing LIVE!
get ready for JAM!

Features

Short spoken:

  • 16xdrumtriggers > Trigger-Routing-Matrix > Drum-Syntesizers
  • Melody-lines > Trigger-Routing-Matrix > Melody-Syntesizers


Rules:

  • Drum-Trigger are Velocity Master > we dont care about the velocity of the Melodys
  • There are Songs (ProgramChange), each Song has 16 different Trigger-Routings Presets> these are the Song-Parts
  • 512 Songs saved on SD-Card, and Load-able while playing
  • 512 System-Settings(Setups) saved on SD-Card…i use only one of it
  • Triggermatrix midi-outs are connected to all synths, so it manage the program-change also
  • 16x Trigger-OUTs with fixed Notes, on one midichannel - to connect Drum-Synths, Drum-Samplers
  • 6x Polyphonic Melody-Retrigger-OUTs on 6 MidiChannels - to connect MelodySynths to it
  • 12x Monophonic Melody-Retrigger-OUTs on 12 MidiChannels - to connect Monophonic Synths like pitchable Drums or Bass-Synths
  • All 16 Trigger & ReTrigger-OUTs share the same Routing and Channelstrip UI (Mute, Solo, Roll…)
  • Trigger, Poly, Mono-OUTs can be controlled seperatly by > Random-Kill & Velocity-OFFSet
  • 6x Melody-Input-Matrix - Route & Mix Melody Inputs to the 16 Melody-Retrigger-Outs (saved in Song)
  • 16x Melody-Input-Matrix-Hold-Buttons - hold the last Note, save it in the Patch - usefull when pitch drums.


V1: the Matrix has also a Trigger-Sequencer built in, the Melodys have to come from anywhere else, but @ the end, they have to be plugged into the matrix…
Trigger-sequencer, a few facts:

  • is a Drum-Step-Sequencer
  • 256 Steps in total
  • minimal LoopSection is 16steps = 1 Page, there are 16 pages to chain
  • intro LoopSection, from step 0 until to the “minimal LoopSection”- is played once, then it loops the normal LoopSection
  • The sequencer is made to give a static NoteStream, the Song-Structure is done by the TriggerMatrix
  • Full Velocity control, visible with 3 different colours, each colour-Vel is set with its own CC
  • Free programmable Swing to each Step, with 2 different swing Length-sets, which are controlled live via CC
  • copy, paste, erase of pages
  • copy, paste, erase of rows
  • forward, backward, fw><bw - play direction
  • Not only 4/4 are possible, all other things like 5/4 are possible! +++

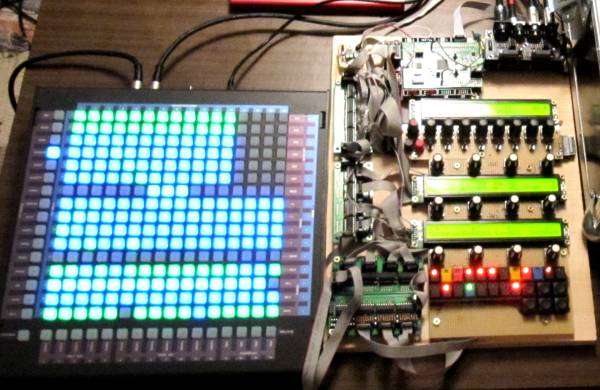

Generic Interface

Generic in sense of: PCBs that already out there:

so when you have those things, upload the Code & watch the videos above

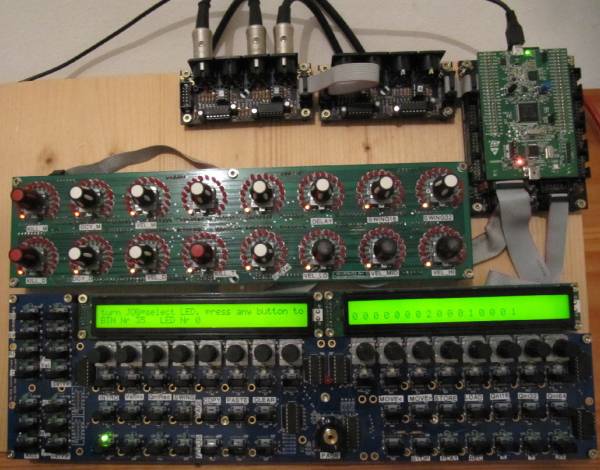

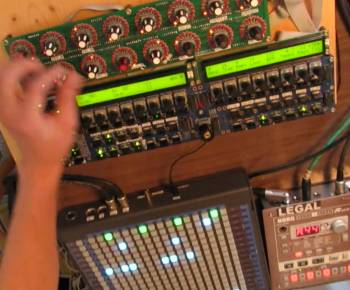

Serial Chain is: Wilba SEQ-CS and then LRE8x2
code is working, SEQUENCER timing is a mess, i was still a newbee in c > “learning by doing”

here is a "FrontPanel+Pin-Out" where the functions on the WILBA CS & LRE8x2 are explained

TriggerMatrix V3

Teaser

V2 was Song-Structured, V3 is to JAM
in V2 where lot of UI-Elements, Menues, and Settings.

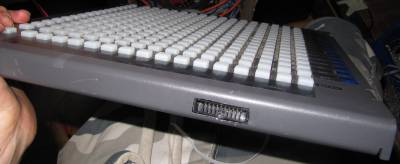

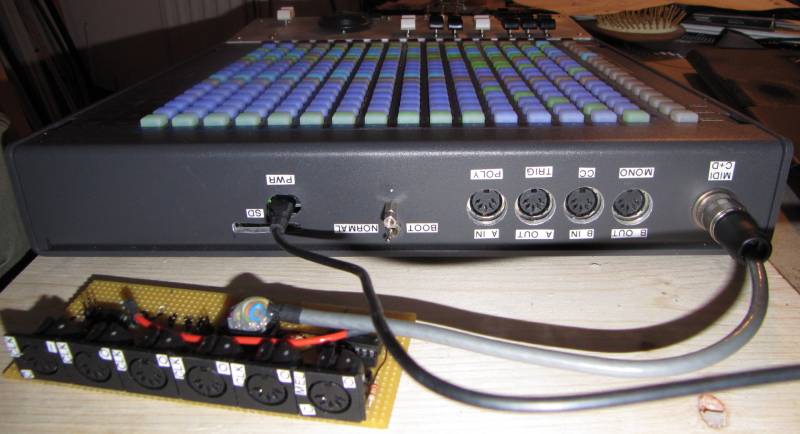

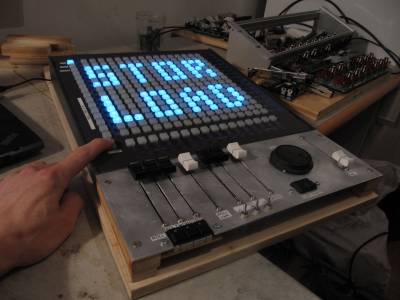

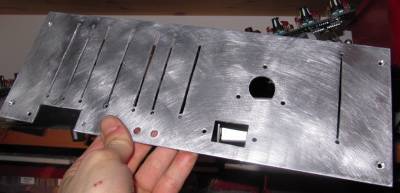

V3 is stripped down and optimized: 8 Faders, 5 Tactial Buttons, 3 Switches, 1 Encoder, + BLM16+16X.
its more the orginal V0 Tekkstar, there we had only a matrix a view buttons and Pots
3/4 4/4 5/ 7/4… and others, is Set on the 16×16 Matrix with “on matrix text”.
Timing now is rock-steady. And we are Sequencing on 32th
New is the Clip-Launcher, here we can Ableton-Style switch Clip-Variations and Songs
Now we have a Roll-Variation Fader!

Features

Short spoken:

  • 16xdrumtriggers > Trigger-Routing-Matrix > Drum-Syntesizers
  • Melody-lines > Trigger-Routing-Matrix > Melody-Syntesizers


Rules:

  • Drum-Trigger are Velocity Master > we dont care about the velocity of the Melodys
  • There are Songs (ProgramChange), each Song has 8 different Trigger-Routings Presets> these are the Song-Parts
  • 256 Songs saved on SD-Card, and Load-able while playing
  • System-Settings, like Ports or MidiChannels are Hardcodet
  • Triggermatrix midi-outs are connected to all synths, so it manage the program-change also
  • 16x Trigger-OUTs with fixed Notes, on one midichannel - to connect Drum-Synths, Drum-Samplers
  • 5x Polyphonic Melody-Retrigger-OUTs on 5 MidiChannels - to connect MelodySynths to it
  • 11x Monophonic Melody-Retrigger-OUTs on 11 MidiChannels - to connect Monophonic Synths like pitchable Drums or Bass-Synths
  • All 16 Trigger & ReTrigger-OUTs share the same Routing and Channelstrip UI (Mute, Solo, Roll…)
  • Trigger, Poly, Mono-OUTs can be controlled seperatly by > Random-Kill & Velocity-OFFSet
  • 6×16 Melody-Input-Matrix - Route & Mix Melody Inputs to the 16 Melody-Retrigger-Outs (saved in Song)
  • 16x Melody-Input-Matrix-Hold-Buttons - hold the last Note, save it in the Patch - usefull when pitch drums.


the Matrix has also a Trigger-Sequencer built in, the Melodys have to come from anywhere else, but @ the end, they have to be plugged into the matrix…
Trigger-sequencer, a few facts:

  • is a Drum-Step-Sequencer
  • 256 Steps in total
  • 32 th fixed rate
  • 3,4,5,7,11,13/4 tact
  • minimal LoopSection is 16steps = 1 Page, there are 16 pages to chain
  • intro LoopSection, from step 0 until to the “minimal LoopSection”- is played once, then it loops the normal LoopSection
  • The sequencer is made to give a static NoteStream, the Song-Structure is done LIVE by the TriggerMatrix-ROUTER
  • Full Velocity control, visible with 3 different colours, Velocity Set via FADER
  • Free programmable Swing to each Step, with 2 different swing Length-sets, which are controlled live via CC EDIT no CC for that right now
  • copy, paste, erase of pages
  • copy, paste, erase of rows
  • fixed forward play direction

U Interface

PCBs that already out there:

so when you have those things, upload the Code & watch the videos above

Extendet UI via GPIO via J10AB, J5AB:





Community users working on it

  • Phatline = Programming, Documentation, Hardware-Prototype, Testing, Jamin…

Getting Involved ?

Just let a Private message on the forum to user already involved
