Etching PCB DIY

Before sending some PCB to get pro made (really the best time proof solution) it is useful to debug it by etching it yourself

Toner Transfer

A Simple and costless method Flow to make proto PCB based upon Laser Printed Negative and Laminator or Ironer.

The laminator need a hack to increase heating temperature , but it's a more precise way ta make the transfer than ironer.

Simple side Transfer + Etching


Double side Transfer + Etching


Laminator Transfer

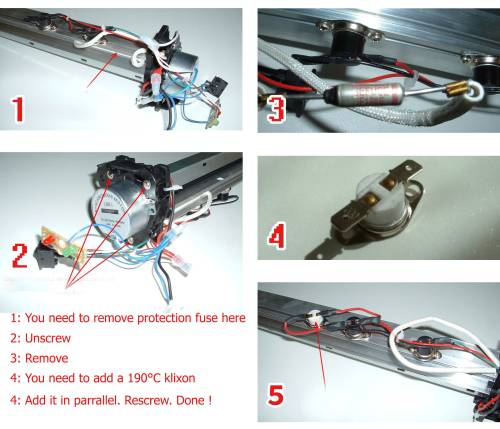

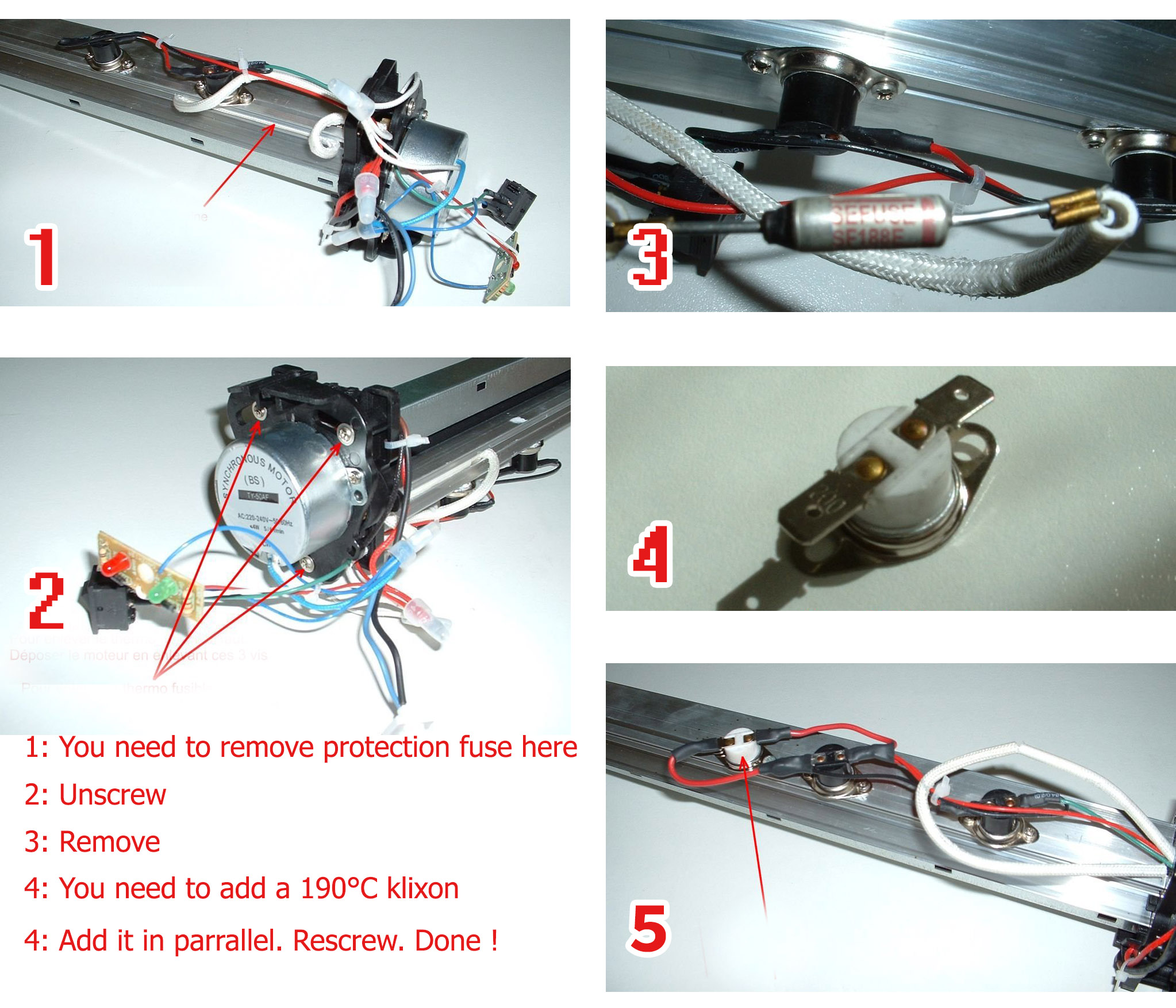

Laminator hack


Method Video


Direct Laser Transfer


Isolation Milling

A method that uses CNC to engrave around paths to isolate them from rest of PCB board
