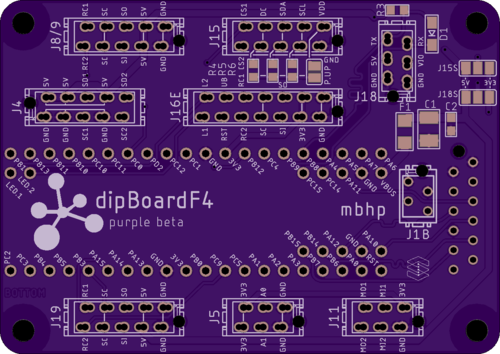

dipboardf4

dipBoardF4

MIDIbox Hardware Platform extension for dipCoreF4.

Features

  • Very small size 65x46mm(less than your credit card).
  • Very low profile.
  • Your application board can be stacked on bottom with 'Micro-match' connectors.
  • The dipCoreF4 can be installed on the two side.
  • Provides all the most important features and ports for regular mbhp.

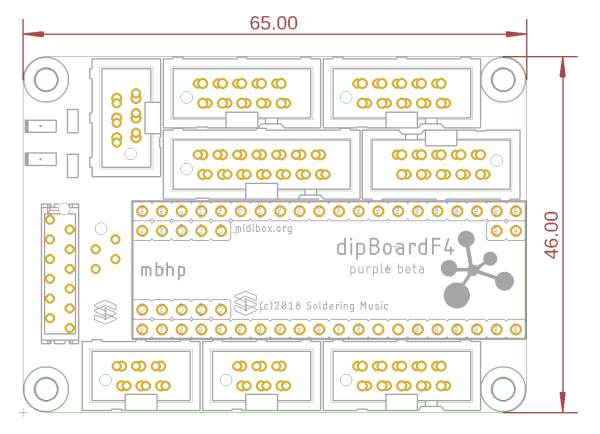

Dimension


PCB


2 layers PCB design.
Fits 2 layer mostly common design rules.

  • min. drill 10mil
  • min. width 6mil

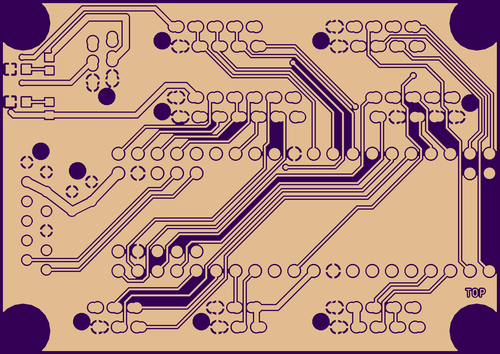

Top copper

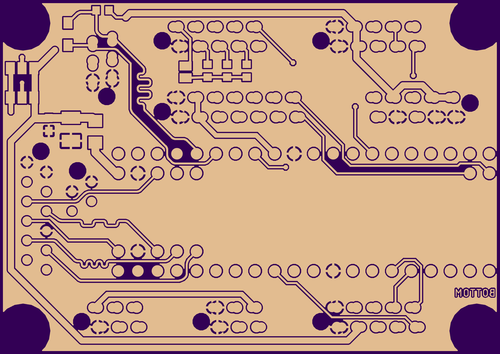

Bottom


BOM

version 1. Mouser BOM:toDo

Qty Value Package Parts MouserReicheltConradLCSCNotes
Resistors
2 680R 5% 0603 R1, R2 667-ERJ-PA3J681V C103784 Depends on Leds
4 1K 5% 0603 R3, R4, R5, R6 755-ESR03EZPJ102 C253329 R3 if you use CAN without transceiver
PTC fuses, resettable thermistors
1 1206L150THWR1206F1576-1206L150THWR C261956
Capacitors
1 100n 0603C2 80-C0603C104Z3V C1688
1 47u Tantalum SMC_B(1210)C1 74-TMCMB1C476MTRF C112105
Diode
1 1N4148WSSOD323-WD1 512-1N4148WS C108805 Only if you use CAN without transceiver
LEDs
2 0805 5V, 3V3 755-SML-H12U8TT86C C72037
dipCoreF4 socket
2 1×20 low profile female 517-929870-01-20-RA C9811 for pads 1 to 40
2 1×5 low profile female 517-929870-01-05-RA no need break it down from belowfor pads 41 to 50
1 1×2 low profile female 517-929870-01-02-RA C9811 for pads 51 to 52
Connector
1 micro-match 2×6 FemaleJ1A 571-8-215079-2 or 571-1-2178710-2 (value line) no!Place on top
3 options available for PORTs connectors(depends on you app.)
Option 1 - Regular Shrouded Headers
3 2×3 Male J5, J11, J18 710-61200621621 C132438 Place on top
4 2×5 Male J4, J8/9, J15, J19 710-61201021621 C132435 Place on top
1 2×7 Male J16E 710-61201421621 C132432 Place on top
Option 2 - Stacking Micro-Match Connector
1 2×2 Female J1B 571-7-215079-4 or 571-2178710-4 (value line) Place on bottom
3 2×3 Female J5, J11, J18 571-215079-6 or 571-2178710-6 (value line) Place on bottom
4 2×5 Female J4, J8/9, J15, J19 571-12150790 or 571-1-2178710-0(value line) Place on bottom
1 2×7 Female J16E 571-8-215079-4 or 571-1-2178710-4 (value line) Place on bottom
Option 3 - Micro-Match Paddle Board for low profile connector
3 2×3 IDCJ5, J11, J18 571-7-215570-6 Place on top
4 2×5 IDCJ4, J8/9, J15, J19 571-1-215570-0 Place on top
1 2×7 IDCJ16E 571-8-215570-4 Place on top

Ports and features.

toDo


Compatible/stack-able boards options



For any questions, informations or observations do not hesitate to contact me (Forum).
Antichambre.
