dipboardf4_modules

dipBoardF4 Modules

Basic connection Modules for dipBoardF4 and dipCoreF4.

Features

  • Dual OTG USB, one Dual role(mini-AB, B) and second is Host only(A).
  • DC Input 9-12V with 5V regulator, switch and led.
  • In device Mode, VBUS is switched off when DC Input is enough to supply the 5V regulator.
  • Power switch also acts on USB powering.
  • micro-SD Card socket with push-push.
  • Reset and User buttons, 2 leds for user purpose.
  • Dual MCAN bus RJ11 connectors with 120Ω termination switch.

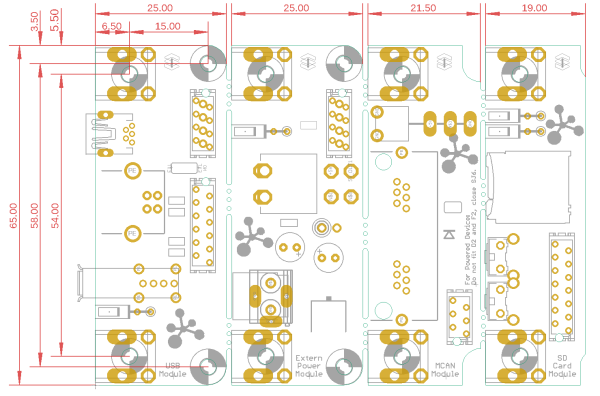

Dimension

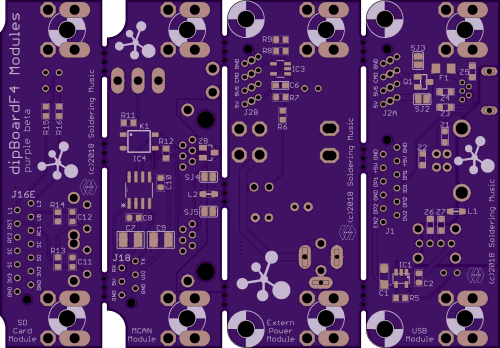

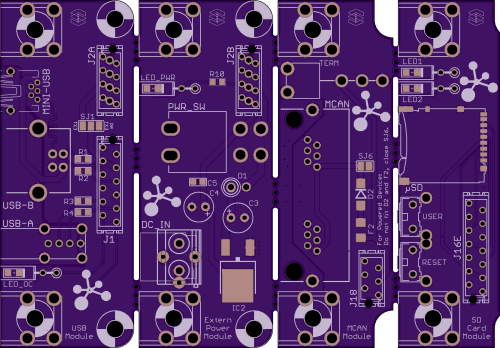

PCB


2 layers PCB design.
Fits 2 layer mostly common design rules.

  • min. drill 10mil
  • min. width 6mil



BOMs


USB Module

version 1. Mouser BOM:toDo

Qty Value Package Parts MouserReicheltConradOtherNotes
Resistors
4 22R 5% 0603 R1, R2, R3, R4 667-ERJ-PA3J220V
1 680R 5% 0603 R5 667-ERJ-PA3J681V Depends on Led
PTC fuses, resettable thermistors
1 1206L150THWR1206F1576-1206L150THWR
Capacitors
1 100n 0603C2 80-C0603C104Z3V
1 4,7u Tantalum SMC_A(1206)C1 647-F931C475MAA
ESD Suppressors / TVS Diodes
7 CG0603MLC-05E0603Z1, Z2, Z3, Z4, Z5, Z6, Z7652-CG0603MLC-05E
Ferrite Bead
1 BLM210805L1 81-BLM21P331SG
LEDs
1 0805 or THT LED_OC 755-SML-H12U8TT86C(0805) 2x5mm rectangular THT
Transistor
1 FDN304P SSOT-3 Q1 512-FDN304P P-Channel MOSFET
IC
1 STMPS2161STRSOT23-5LIC1 511-STMPS2161STR Power Switch IC
Connectors
1 mini-USB THT MINI-USB 571-1734510-1
1 USB-B THT USB-B 538-67068-8000
1 USB-A THT USB-A 538-48204-0001
1 micro-match 2×4 FemaleJ2A 571-7-215079-8 or 571-2178710-8 (value line)
1 micro-match 2×6 FemaleJ1A 571-8-215079-2 or 571-1-2178710-2 (value line)
Others
2 Screw terminal 534-7790


External Power Module

version 1. Mouser BOM:toDo

Qty Value Package Parts MouserReicheltConradOtherNotes
Resistors
1 680R 5% 0603 R10 667-ERJ-PA3J681V Depends on Led
2 10K 1% 0603 R6, R7 755-ESR03EZPF1002
1 22K 1% 0603 R8 755-ESR03EZPF2202
1 33K 1% 0603 R9 667-ERJ-PA3F3302V
Capacitors
2 100n 0603C5, C6 80-C0603C104Z3V
2 10u THTC3, C4 667-ECE-A1HKA100I 6mm diam. max, 2.5mm lead space
Diode
1 SB240 DO15 D1 625-SB240-E3
LEDs
1 0805 or THT LED_PWR 755-SML-H12U8TT86C(0805) 2x5mm rectangular THT
IC
1 LD1086DT50TRDPACKIC2 511-LD1086DT50TR
1 LM321MFSOT23-5IC3 926-LM321MF/NOPB Low Power Single Op Amp
Switch
1 E201J1AV2 PWR_SW 611-E201-004 DPDT power switch(same as Sammich…)
Connectors
1 micro-match 2×4 FemaleJ2B 571-7-215079-8 or 571-2178710-8 (value line)
1 DC in Socket Opt*1 FemaleDC_IN 490-PJ-037A Jack on board
1 DC in Socket Opt*2 FemaleDC_IN 651-1729128 + 502-712A Screw terminal on board(Board/Switch on front) + Jack on backpanel
Others
2 Screw terminal 534-7790


SD Card Module

version 1. Mouser BOM:toDo

Qty Value Package Parts MouserReicheltConradOtherNotes
Resistors
2 680R 5% 0603 R15, R16 667-ERJ-PA3J681V Depends on Led
2 100K 5% 0603 R13, R14 755-ESR03EZPJ104
Capacitors
2 100n 0603C11, C12 80-C0603C104Z3V
LEDs
2 0805 or THT LED1, LED2 755-SML-H12U8TT86C(0805) 2x5mm rectangular THT
Switches
2 B3F-31xx USER, RESET 653-B3F-3122
Connectors
1 DM3AT-SF-PEJM5 Socket micro-SD 571-8-215079-4 with push-push
1 2×7 Female J16E 571-8-215079-4 or 571-1-2178710-4 (value line)
Others
2 Screw terminal 534-7790


MCAN Module

version 1. Mouser BOM:toDo

Qty Value Package Parts MouserReicheltConradOtherNotes
Resistors
1 100R 5% 0603 R12 755-ESR03EZPF1000
1 1K 5% 0603 R11 755-ESR03EZPJ102
PTC fuses, resettable thermistors
1 1206L150THWR1206F2576-1206L150THWR
Capacitors
2 100n 0603C8, C10 80-C0603C104Z3V
2 1u 1210C7, C9 710-885012209003
ESD Suppressors / TVS Diodes
1 PESD1CAN SOT23Z8 771-PESD1CAN-T/R
Diodes
1 LSM115J DO214BA D2 494-LSM115JE3/TR13
Ferrite Bead
1 BLM210805L2 81-BLM21P331SG
Relay
1 TLP175A SOP4 Q1 757-TLP175A(TPLE Photorelay MOSFET
IC
1 TCAN1042GVSOIC8IC4 595-TCAN1042GVDRQ1 CAN tranceiver
Switch
1 1101M2S3AV2BE2 TERM 611-1101M2S3AV2BE2
Connectors
1 RJE0166202 dual RJ11 6p6c MCAN 523-RJE01-662-02
1 micro-match2x3 Female J18 571-215079-6 or 571-2178710-6 (value line)
Others
2 Screw terminal 534-7790
