TM5 Codeblock
this is one essential part for my triggermatrix5
it handles the Menue and the Buttons…

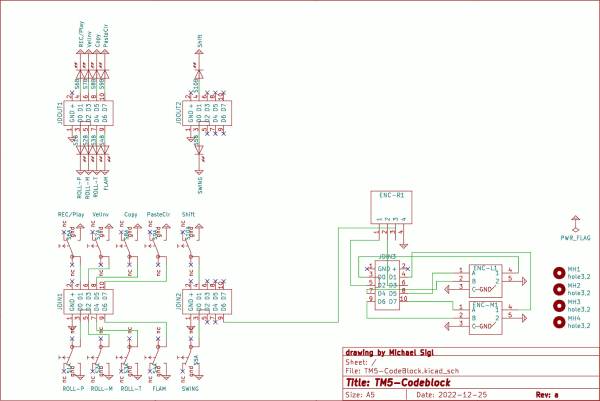

Shematic
Building and BOM

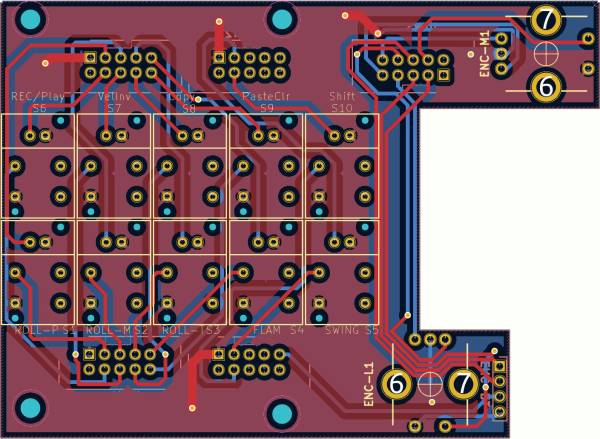

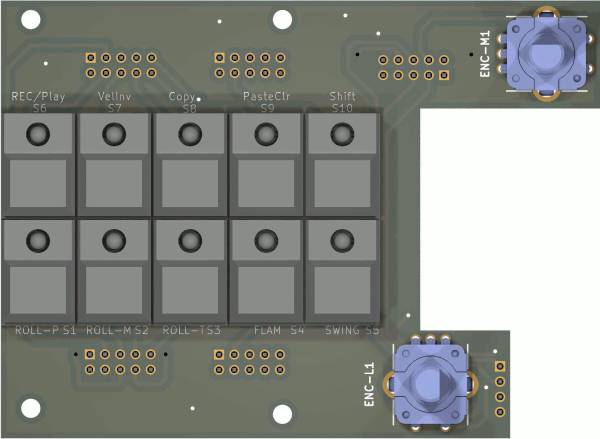

100 THT, and handsolder

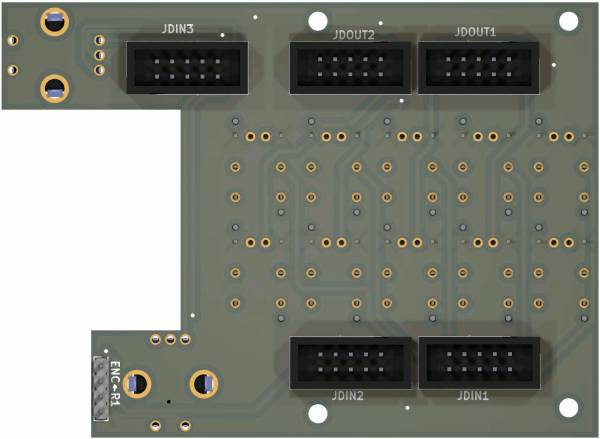

This PCB is needet 1x for triggermatrix5
BOM
| qty | reference | value | mouser |
|---|---|---|---|
| 3 | ENC | PEC11R-4015F-S0024 | 652-PEC11R-4015F-S24 |
| 1 | ENC-R1 | Pin-Head-1×4-Male | 649-1012937890401BLF |
| 5 | JDIN1, JDIN2, JDIN3, JDOUT1, JDOUT2 | Pin-Header-Shroudet-2×5-THT-DIN | 517-30310-6002 |
Order-List
copy following list into this mouser.com-Link
652-PEC11R-4015F-S24|3
649-1012937890401BLF|1
517-30310-6002|5
Order from Reichelt:
10x Button
10x PinHeader 2x5Pin Female
Order from Midiphy:
1x Knob SetDK16-190V3 knob
To Do
waiting for the Prototype
Community users working on it
- Phatline = PCB & Shematic, UI-Programming, Documentation…
Just let a Private message on the forum to user already involved.
or join the forum: Triggermatrix 5
