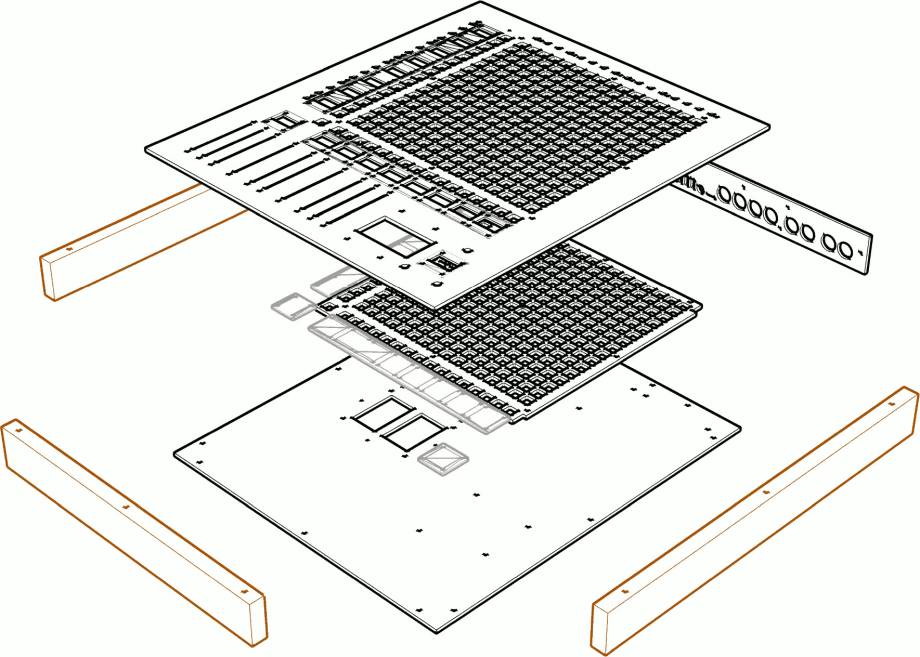

TM5 Housing
this is the Housing for Triggermatrix5
Panels

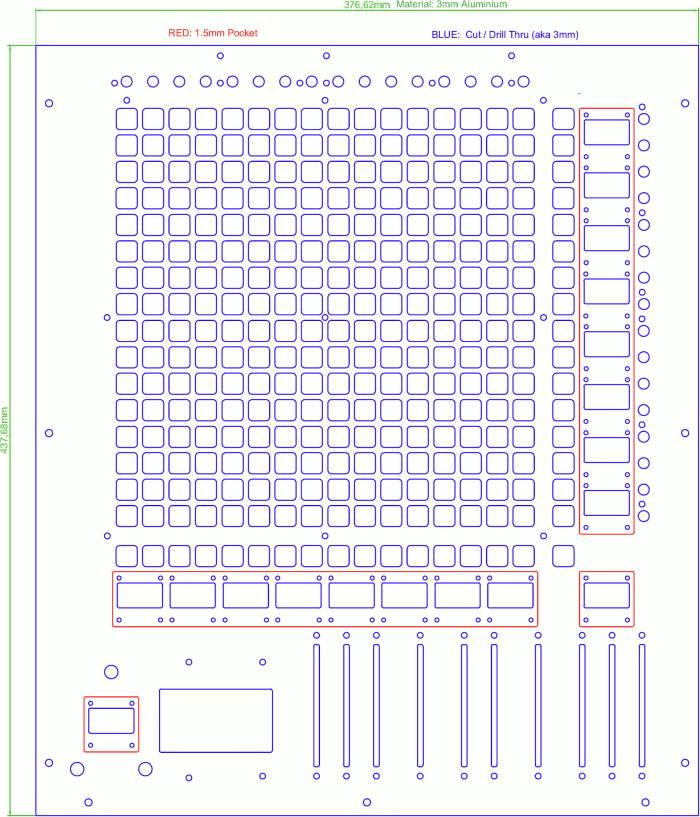

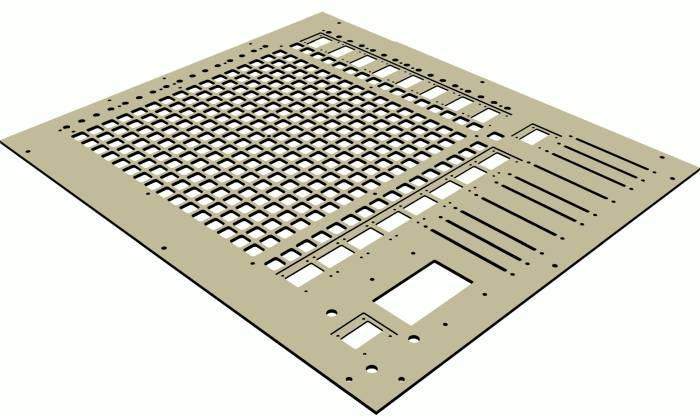

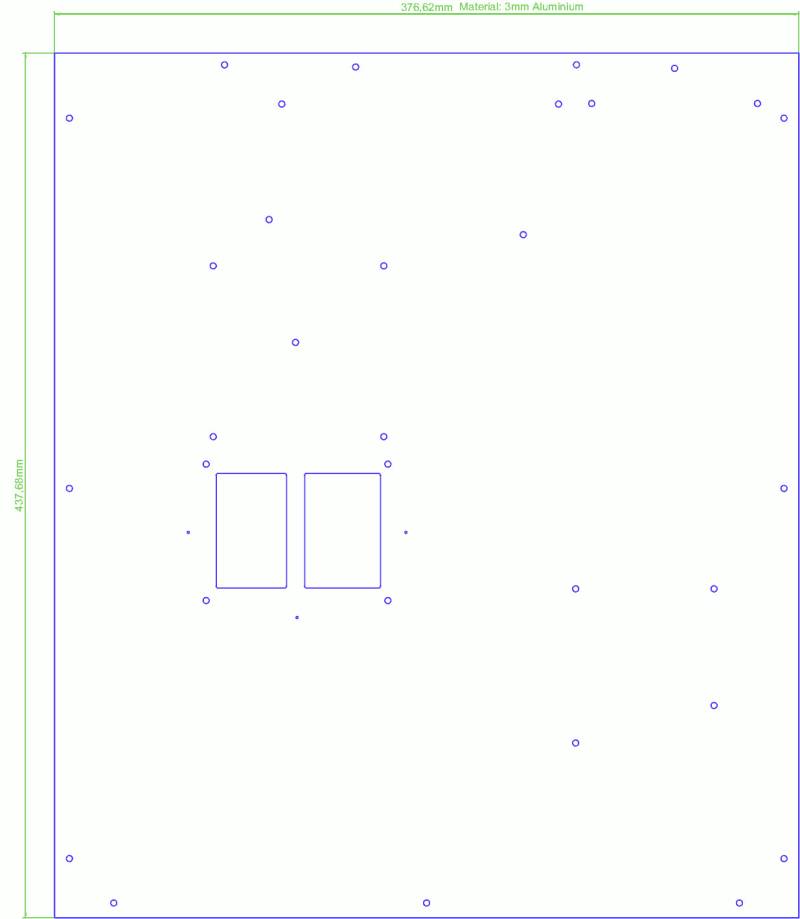

Frontpanel for Milling
if you own a CNC-Machine, you can use this design, otherwhise its cheaper if you leave out those 1,5mm depth Display-Planes, because then you can Lasercut! and thats cheaper
tm5-frontpanel.zip

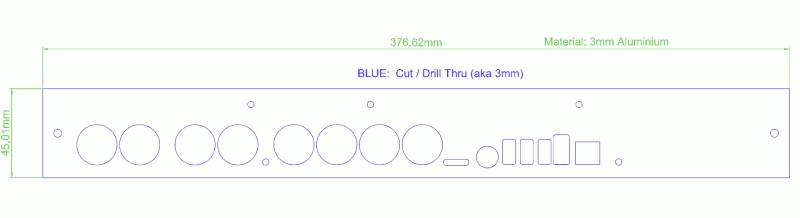

Backpanel
Groundpanel

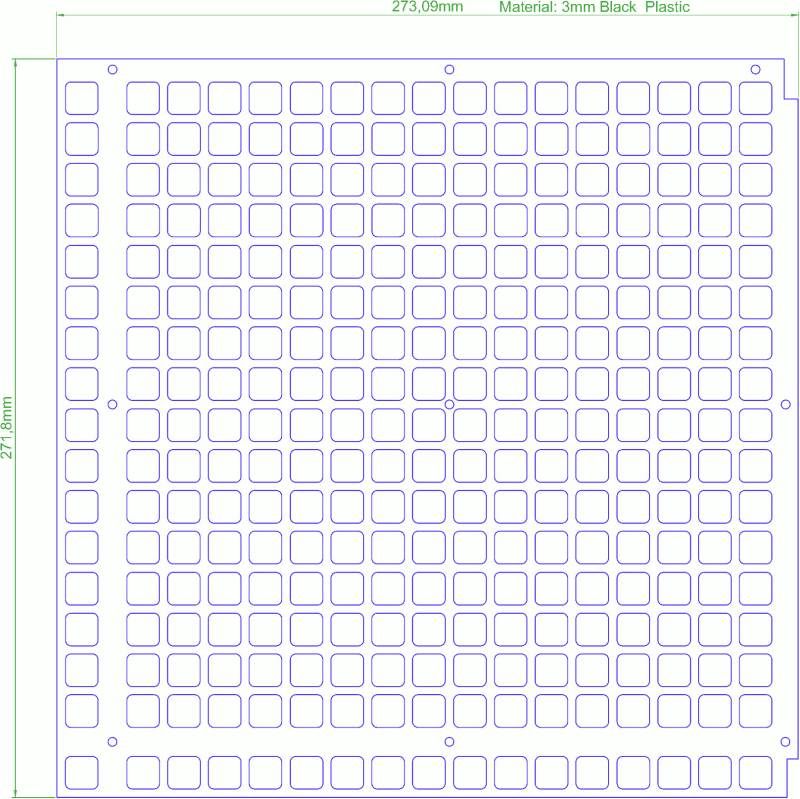

BLM-Acrylic Spacer
Formulor (EU)
Material: 3,00 mm Acrylglas GS Matt
Color: schwarz, opak (9H01)
File: tm5-blm-spacer.zip
Price: about 72€ incl Shipping from Germany to Austria

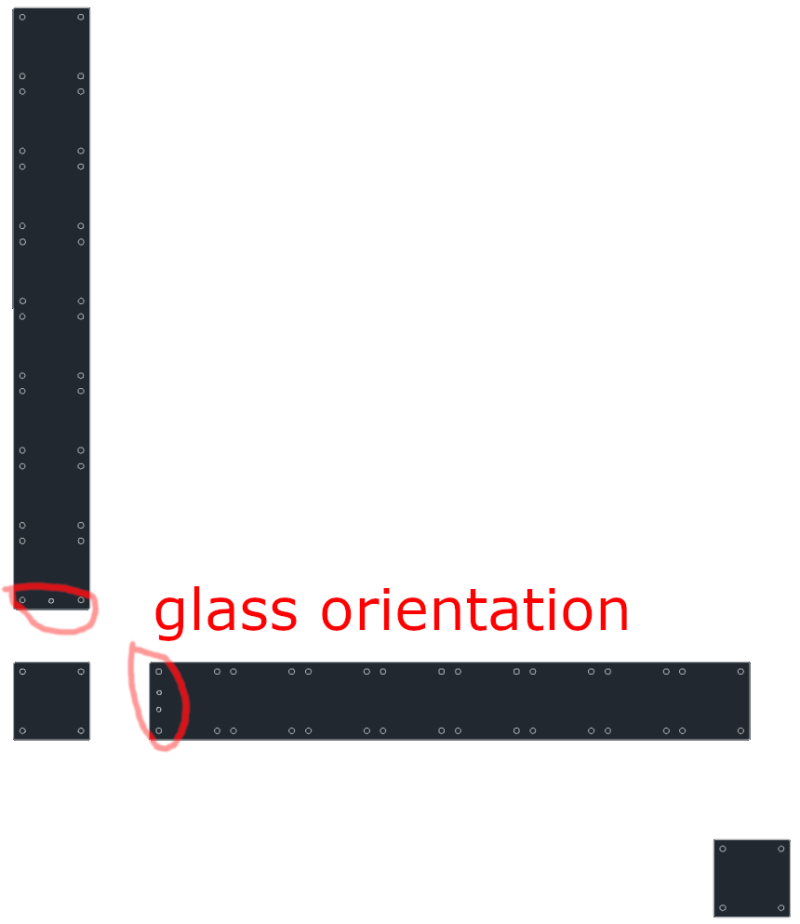

Protection-Glass for Screens

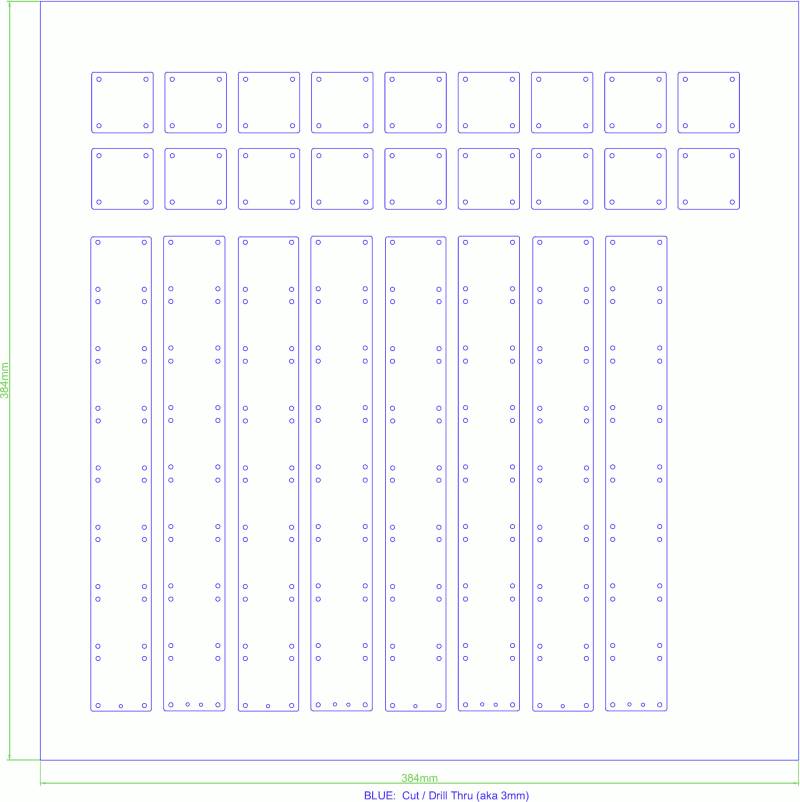

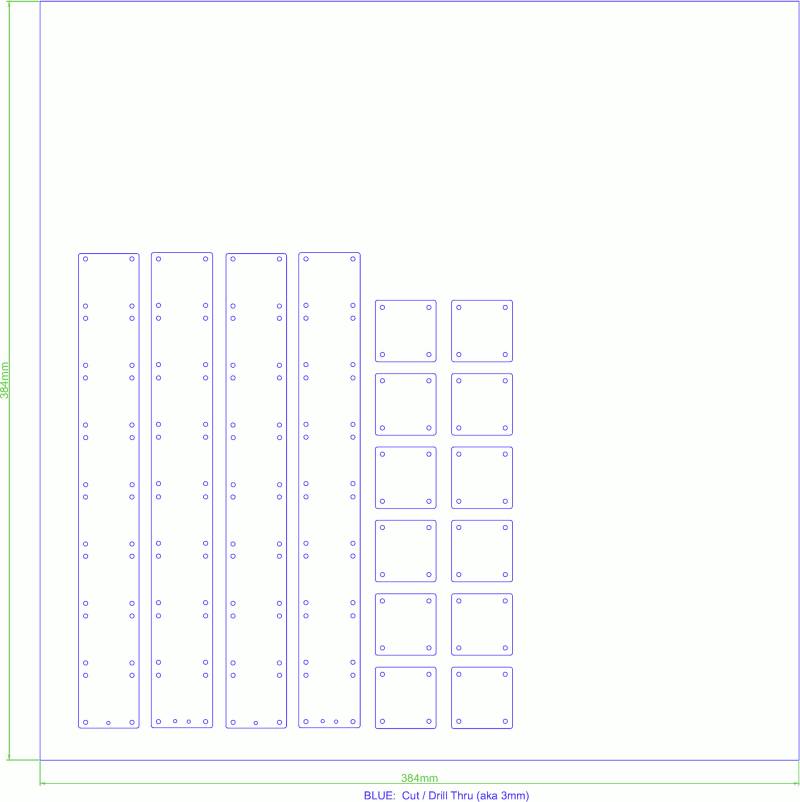

These are made for the Frontpanel-for-Milling-PANEL. But can be used for the Frontpanel-Lasercut too.
use 1mm Clear transparent Precision-Acrylic for example Formulor (EU)
or ponoko (US)
2 Pairs off Protection Screens, optimized for formular: tm5-lcd-protection.zip
more Protection Screens, optimized for formular: tm5-lcd-protection-mehrere.zip

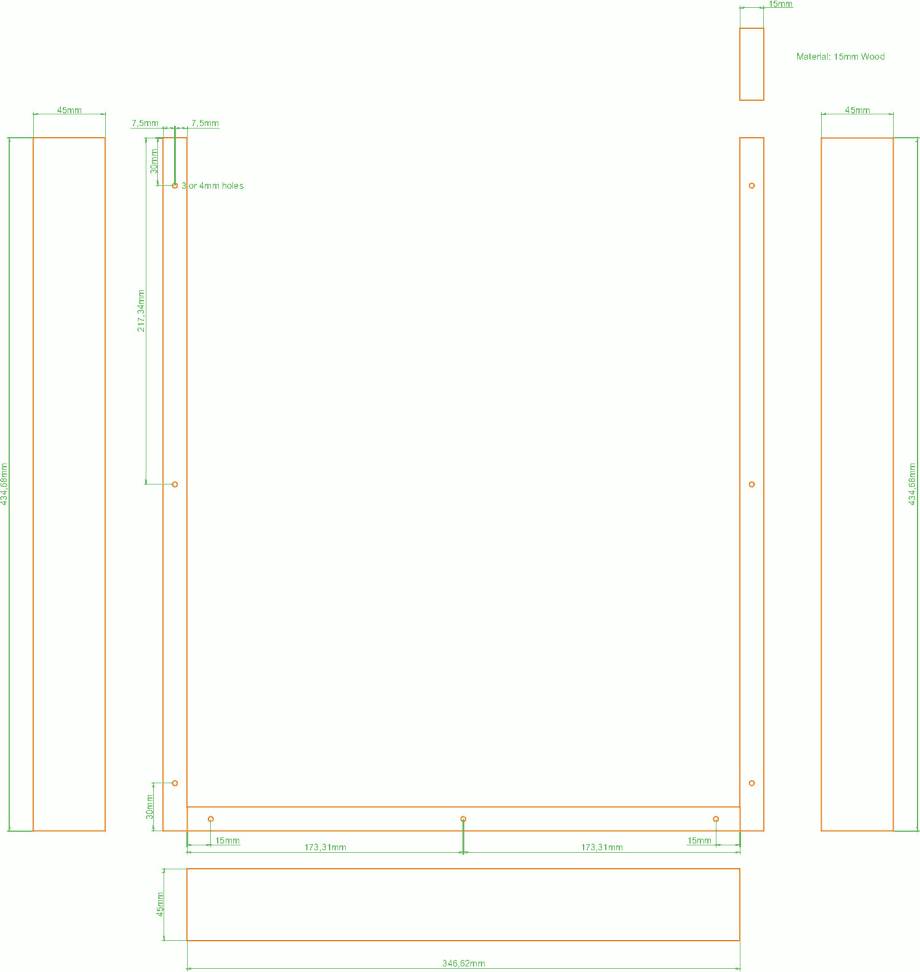

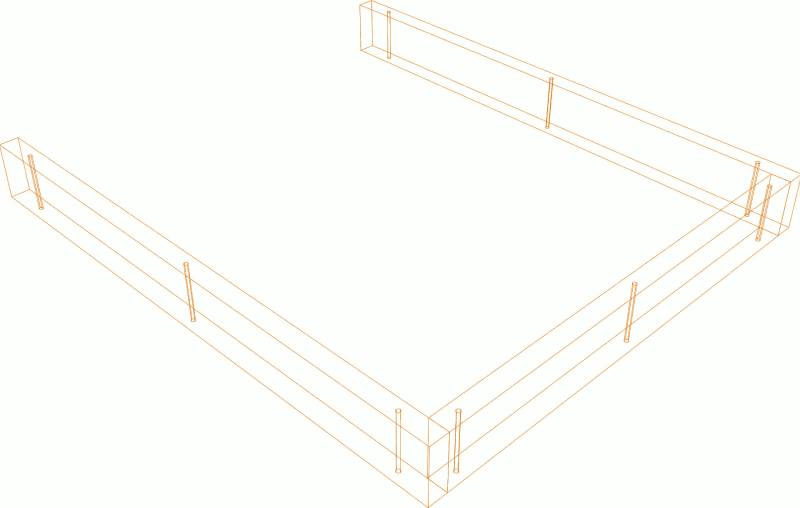

Wooden Side Panels
3x Wooden 15mm Panels, DIY or ask your local carpenter or hardwarestore
