TM5 Gate-Expansion
This are the Gate In/Out boards, 4 off them are needet to get 16x Gate-input/Trigger, and 16x Gate-Output

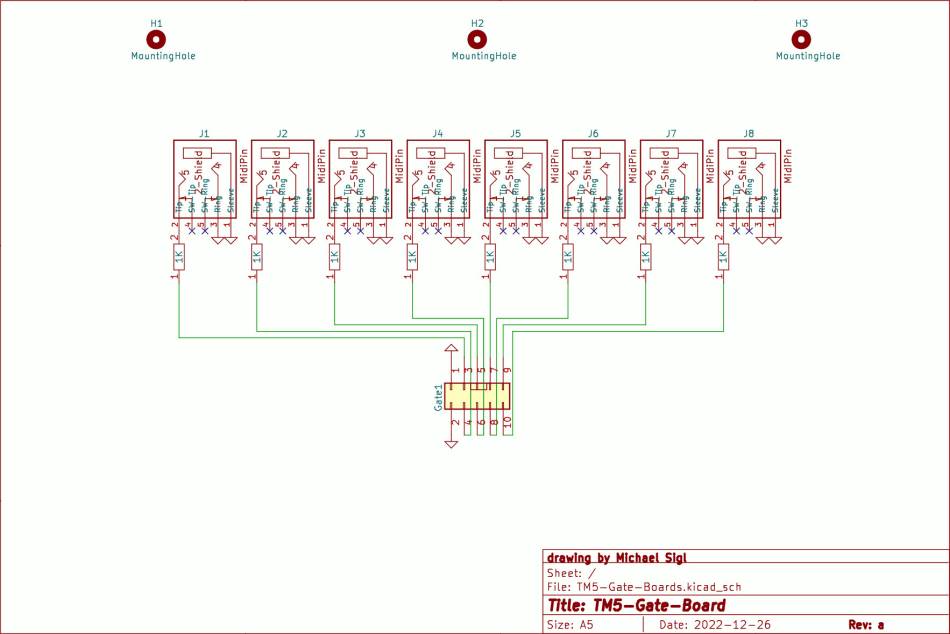

Shematic
Building and BOM

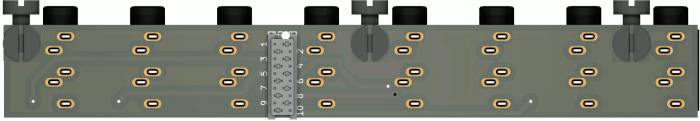

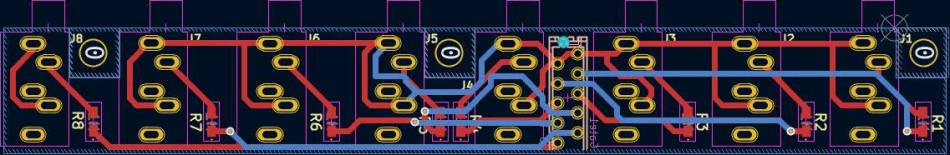

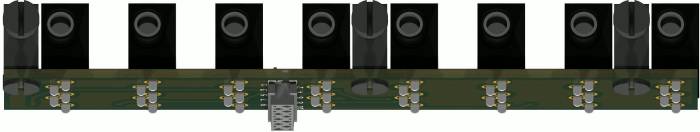

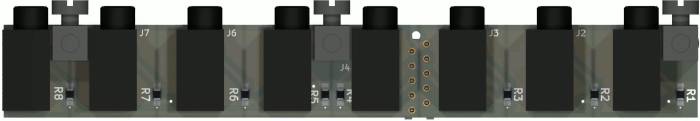

You need this PCB 4times
BOM
| qty | reference | value | footprint | MouserPartNr |
|---|---|---|---|---|
| 1 | Gate1 | Header-2×5-Micromatch | Header-2×5-Micromatch | 571-1-2178710-0 |
| 8 | J1-J8 | 3.5Jack for Gates | 3-5JACK-CUI_SJ1-3535NG | 490-SJ1-3535NG |
| 8 | R1-R8 | 1K | R-1K-0805-250mW | 667-ERJ-P06J102V |
ok this is a list for one PCB, for Triggermatrix you need that 4times!
so all following lists are already 4 times values!
copy following list into this mouser.com-Link
571-1-2178710-0|4
490-SJ1-3535NG|32
667-ERJ-P06J102V|32
Order from Reichelt:
6xMicromatch-connector 10pin
The 3x Montage Blocks H1,H2,H3 * 4 = 12 - is already includet in the triggermatrix5 - BOM!
To Do
waiting for Prototype PCB
Community users working on it
- Phatline = PCB & Shematic, UI-Programming, Documentation…
Just let a Private message on the forum to user already involved.
or join the forum: Triggermatrix 5
